Introduction to Physical Computing | Grade 8 ICT Lesson 5

Physical computing combines hardware and software to interact with the physical world through simple electronic components. In this chapter, we will explore the basics of logic gates, their functions, and how to use them in circuits.

You can get better practical knowledge by watching the given videos related to the topics mentioned in the syllabus of this lesson Grade 8 ICT – By clicking on the relevant categories, you can see the description of the lesson related to the topic

Related resources and links to this lesson

Text Book  Work Book

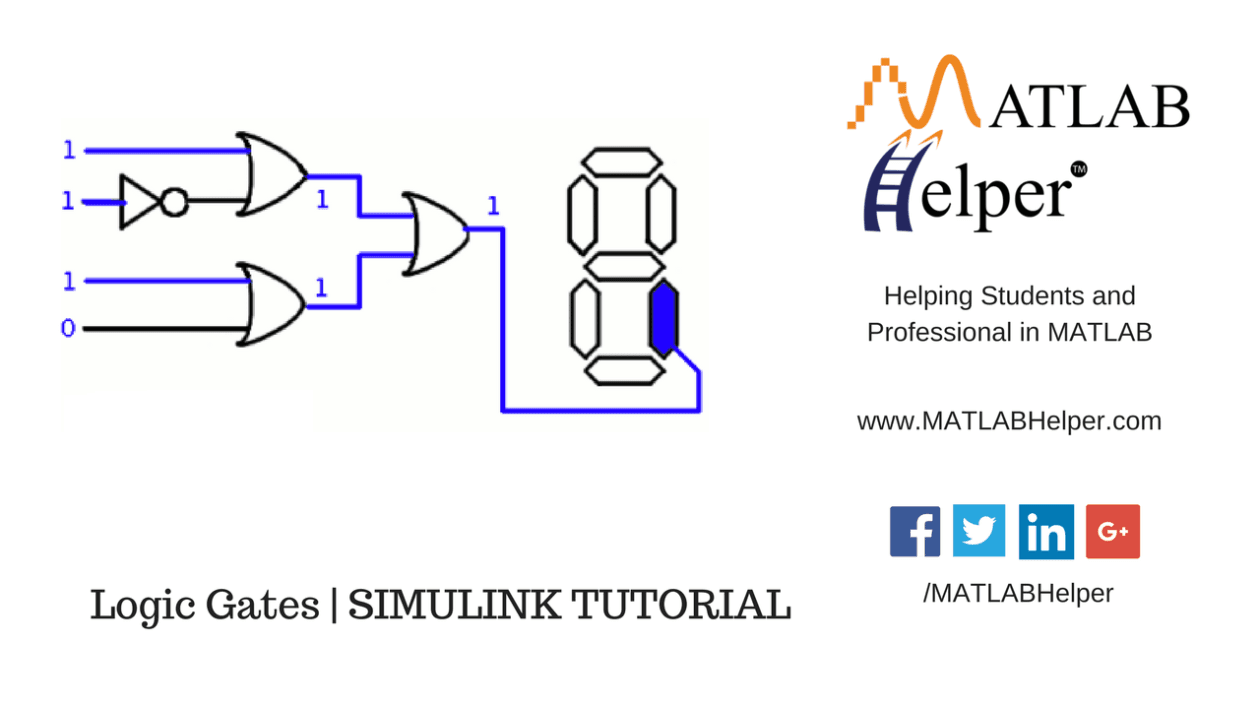

What Are Logic Gates?

Logic gates are the building blocks of digital circuits. They perform logical operations based on inputs to produce specific outputs. Logic gates are used in computers, calculators, and many other devices to process data.

Types of Basic Logic Gates

1. AND Gate
2. OR Gate
3. NOT Gate

Each gate has its unique function, which we will learn step by step.

AND Gate

The AND gate produces an output of 1 (True) only when both inputs are 1.

• Symbol:
  A symbol resembling a D-shape represents the AND gate.

OR Gate

The OR gate produces an output of 1 (True) when at least one input is 1.

• Symbol:
  A curved shape represents the OR gate.

NOT Gate

The NOT gate produces the opposite of the input.

• Symbol:
  A triangle with a small circle at the tip represents the NOT gate.

Using Software to Identify a Logic Function

Software tools, such as logic simulators, help students understand how logic gates work by providing virtual environments to test circuits.

Steps to Use Logic Simulation Software

1. Open the simulator and select the logic gates you want to test.
2. Connect the gates as per your design.
3. Provide input values (0 or 1) to the gates.
4. Observe the output and compare it with the truth table.

Constructing Simple Circuits Using Logic Gates

Example: A Simple AND Gate Circuit

• Components Needed:
  1. AND gate IC
  2. Power source (Battery)
  3. Wires
  4. LED
• Steps:
  1. Connect the AND gate IC to the power source.
  2. Attach two input wires to the gate.
  3. Connect the output to an LED.
  4. Test by providing different combinations of inputs.

Real-World Application:

An AND gate circuit can be used in security systems where a door opens only when two conditions (e.g., keycard and PIN) are met.

Showing the Functions of Logic Gates Practically

Logic gates can be demonstrated with real-world examples:

• AND Gate: Both buttons must be pressed to light up an LED.
• OR Gate: Pressing either button will light up the LED.
• NOT Gate: When the button is pressed, the LED turns off.

These experiments can help visualize how gates work.

Why Are Logic Gates Important?

Logic gates are the foundation of digital electronics. They are used in:

• Computers: Performing calculations and decision-making.
• Smart Devices: Automating tasks.
• Robotics: Enabling decision-making processes.

Summary

Logic gates are simple yet powerful components of digital circuits. Understanding their functions and applications helps you grasp the basics of electronics and computing. Through simulation software and hands-on experiments, you can explore how these gates work and apply them to real-world problems.

FAQs

1. What are logic gates?
Logic gates are components that perform logical operations based on input signals.

2. What is the difference between AND and OR gates?
An AND gate produces a True output only if all inputs are True, while an OR gate produces True if any input is True.

3. How does a NOT gate work?
A NOT gate inverts the input signal, turning True to False and False to True.

4. Can I test logic gates without hardware?
Yes, you can use logic simulator software to test gates virtually.

5. Where are logic gates used in real life?
Logic gates are used in computers, smart devices, security systems, and many other technologies.
